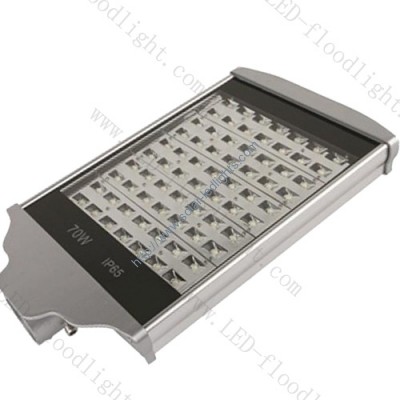

| 型号Part Number:ST70B | 灯体尺寸 Light Size : | 308×460×80(mm) |
| 参数值 Parameter : | ||
| 输入电压 Input Voltage | AC170-250V / DC 24V | |
| 光源功率 Power Power | 70×1W | |
| 系统功耗 System Consumption | 77W | |
| 功率因素 Power Factor | ＞0.9 | |
| 光斑角度 Light Beam | 120 or 140 degree | |
| 相关色温 Color Temperature | 2500K- 8000K | |
| 适应温度 Working Temperature | -35℃～50℃ | |
| 光通量 Luminous Flux | 5600 lm ±5% | |
| 防护等级 Protecting Grade | IP66 | |
| 使用寿命 Working Life | ＞50000 Hours 小时 | |
| 平均照度 Average illumination | 高Height 6M | ＞26Lux |
| 高Height 9M | ＞15Lux | |
| 有效照射范围 Effective illuminated Area | 高Height 6M | 10×24㎡ |
| 高Height 9M | 12×30㎡ | |
| Light Distribution Curve/Beam Pattern | Asymmetric (Bat Wing)/ Rectangular Beam | |
| 主要材料 Chief Material | 铝合金Aluminum Alloy | |
| 净重 Net Weight | 8 kg | |
