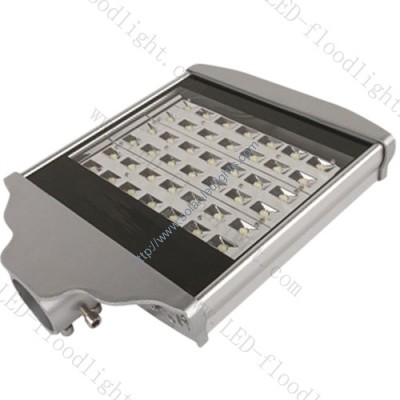

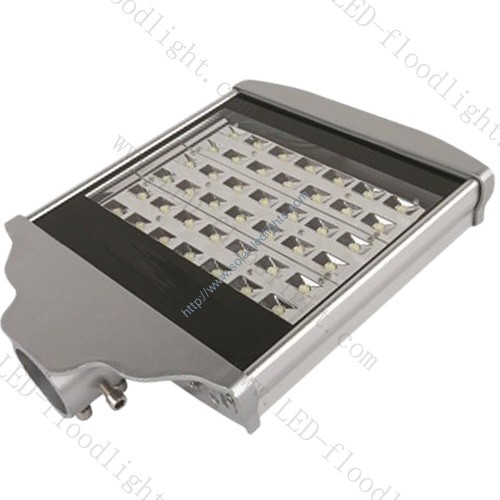

| LED路灯(42W) LED Street Lamp (42W) Suggested light replacement: 120W Sodium Lamp | ||
| 型号Part Number:ST42B | 灯体尺寸 Light Size : | 308×360×80(mm) |
| 参数值 Parameter : | ||
| 输入电压 Input Voltage | AC170-250V / DC 24V | |
| 光源功率 Power Power | 42×1W | |
| 系统功耗 System Consumption | 46W | |
| 功率因素 Power Factor | ＞0.9 | |
| 光斑角度 Light Beam | 120 or 140 degree | |
| 相关色温 Color Temperature | 2500K-8000K | |
| 适应温度 Working Temperature | -35℃～50℃ | |
| 光通量 Luminous Flux | 4000 lm ±5% | |
| 防护等级 Protecting Grade | IP66 | |
| 使用寿命 Working Life | ＞50000 hours 小时 | |
| 平均照度 Average illumination | 高Height 6M | ＞15Lux |
| 高Height 9M | ＞9Lux | |
| 有效照射范围 Effective illuminated Area | 高Height 6M | 10×24㎡? |
| 高Height 9M | 12×30㎡? | |
| Light Distribution Curve/Beam Pattern | Asymmetric (Bat Wing)/ Rectangular Beam | |
| 主要材料 Chief Material | 铝合金Aluminum Alloy | |
| 净重Net Weight | 5 kg | |
| 包装尺寸 Packaging Size | 500×360×130(mm) | |
| 安装管直径 Installing Hole Size | φ61(mm) | |
| Items | High Pressure Sodium Light | LED Street Light |
| Photometric Performance | Bad | Excellent |
| Radiator Performance | Bad | Excellent |
| Electric Performance | Electric Shock Easy( High Voltage) | Safe (Low Voltage) |
| Working Life | Short (5,000h) | Quite Long (＞50,000h) |
| Working Voltage Range | Narrow (±7%) | Wide(±20%) |
| Power Consumption | Quite High | Quite Low |
| Startup Speed | Quite Slow( Over 10minutes) | Rapid (2s) |
| Strobe | Yes( Alternating Current Drive) | No( Direct Current Drive) |
| Optical Efficiency | Low | High |
| Color Index/ Distinguish Feature | Bad, Ra< 50(The Color Of Object Is Faith, Boring, Hypnosis) | Good, Ra>75(The Color Of Object Is Fresh, Veritable And Comfortable |
| Color Temperature | Quite Low ( Yellow Or Amber , Uncomfortable | Ideal Color Temperature ( Comfortable) |
| Bad Glare | Strong Glare (Dazzle) | No Harmful Glare |
| Light Pollution | Strong | No |
| Heating | Serious (>300℃) | Cold Light (<60℃) |
| Lampshade Turn Dark | Easy ( Absorb Dust) | No ( Static Proof) |
| Lamp Aging Turn Yellow | In A Short Time | No |
| Shockproof Performance | Bad(Fragile ) | Good (No Filament Nor Glass) |
| Environment Pollution | Contains Mercury Element Etc. | No |
| Maintenance Cost | High | Quite Low |
| Product Cubage | Big | Small (Slim Appearance) |
| Cost-Effective | Low | High |
| Product Weight | Heavy | Light |
| Integrated Performance | Bad | Excellent |
| The comparison of Five-year total cost between LED Street Light and Traditional Street Lamp | ||
| LED Street Light | Traditional Street Lamp | |
| Lamp Power | 42W | 90W |
| Total Power | 46W | 90W+30W(With Converter) |
| 12 hours | 46W*12 hours | 120W*12 hours |
| Consumption | = 0.552 kw/h | =1.44 kw/h |
| 5 Year | 0.552 kw/h*365 days *5 year | 1.44 kw/h*365 days *5 year |
| Consumption | =1007.4 kw/h | =2628 kw/h |
| 10km 666 pcs Lamps 5 Year Consumption | 1007.4 kw/h*666pcs= | 2628 kw/h *666pcs= |
| 670928.4 kw/h | 1750248 kw/h | |
| Electric Bill | 670928.4kw/h*0.2USD=134186 USD | 1750248kw/h* 0.2USD=350050 USD |
| Lamp Cost | 160 USD | 55 USD |
| 666pcs Lamp Cost | 106560 USD | 36630 USD |
| 5 Year Use Lamp | 666 pcs | 3330 pcs |
| 5 Years Total Cost | 106560(lamp) + 134186 | 183150 (lamp)+ 350050 |
| = 240746USD | =533200 USD | |
| 5 Years Save Cost | 292454 USD | |
| Luminous Efficacy | 80lm/W | 40lm/W |
| Illumination | Meet national standards | Meet national standards |
| Control | Intelligence control | No |
