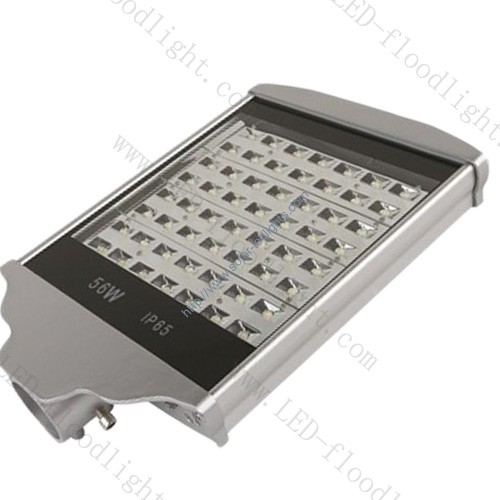

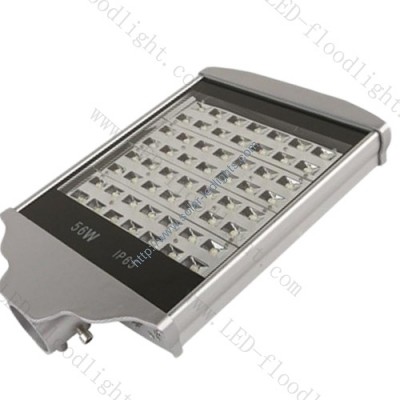

| 型号 Part Number: ST56B | 灯体尺寸 Light Size : | 308×410×80(mm) |
| 参数值 Parameter: | ||
| 输入电压 Input Voltage | AC170-250V / DC 24V | |
| 光源功率 Power Power | 56×1W | |
| 系统功耗 System Consumption | 62W | |
| 功率因素 Power Factor | ＞0.90 | |
| 光斑角度 Light Beam | 120 or 140 degree | |
| 相关色温 Color Temperature | 2500K-10000K | |
| 适应温度 Working Temperature | -35℃～50℃ | |
| 光通量 Luminous Flux | 4480lm±5% | |
| 防护等级 Protecting Grade | IP66 | |
| 使用寿命 Working Life | ＞50000 hours 小时 | |
| 平均照度 Average illumination | 高Height 6M | ＞26Lux |
| 高Height 8M | ＞15Lux | |
| 有效照射范围 Effective illuminated Area | 高Height 6M | 8×20㎡ |
| 高Height 9M | 10×26㎡ | |
| Light Distribution Curve/Beam Pattern | Asymmetric (Bat Wing)/ Rectangular Beam | |
| 主要材料 Chief Material | 铝合金 Aluminum Alloy | |
| 净重 Net Weight | 6 kg | |
| 包装尺寸 Packaging Size | 560×360×130(mm) | |
| 安装管直径 Installing Hole Size | φ61(mm) | |
| Items | High Pressure Sodium Light | LED Street Light |
| Photometric Performance | Bad | Excellent |
| Radiator Performance | Bad | Excellent |
| Electric Performance | Electric Shock Easy( High Voltage) | Safe (Low Voltage) |
| Working Life | Short (5,000h) | Quite Long (＞50,000h) |
| Working Voltage Range | Narrow (±7%) | Wide(±20%) |
| Power Consumption | Quite High | Quite Low |
| Startup Speed | Quite Slow( Over 10minutes) | Rapid (2s) |
| Strobe | Yes( Alternating Current Drive) | No( Direct Current Drive) |
| Optical Efficiency | Low | High |
| Color Index/ Distinguish Feature | Bad, Ra< 50(The Color Of Object Is Faith, Boring, Hypnosis) | Good, Ra>75(The Color Of Object Is Fresh, Veritable And Comfortable |
| Color Temperature | Quite Low ( Yellow Or Amber , Uncomfortable | Ideal Color Temperature ( Comfortable) |
| Bad Glare | Strong Glare (Dazzle) | No Harmful Glare |
| Light Pollution | Strong | No |
| Heating | Serious (>300℃) | Cold Light (<60℃) |
| Lampshade Turn Dark | Easy ( Absorb Dust) | No ( Static Proof) |
| Lamp Aging Turn Yellow | In A Short Time | No |
| Shockproof Performance | Bad(Fragile ) | Good (No Filament Nor Glass) |
| Environment Pollution | Contains Mercury Element Etc. | No |
| Maintenance Cost | High | Quite Low |
| Product Cubage | Big | Small (Slim Appearance) |
| Cost-Effective | Low | High |
| Product Weight | Heavy | Light |
| Integrated Performance | Bad | Excellent |
| The comparison of Five-year total cost between LED Street Light and Traditional Street Lamp | ||
| LED Street Light | Traditional Street Lamp | |
| Lamp Power | 56W | 110W |
| Total Power | 62W | 110W+40W(With Converter) |
| 12 hours | 62W*12 hours | 150W*12 hours |
| Consumption | = 0.744 kw/h | =1.8 kw/h |
| 5 Year | 0.744kw/h*365 days *5 year | 1.8 kw/h*365 days *5 year |
| Consumption | =1357.8 kw/h | =3285 kw/h |
| 10km 666 pcs Lamps 5 Year Consumption | 1357.8kw/h*666pcs= | 3285 kw/h *666pcs= |
| 904294.6 kw/h | 2187810 kw/h | |
| Electric Bill | 904294.6kw/h*0.2USD=180859 USD | 2187810kw/h* 0.2USD=437562 USD |
| Each Lamp Cost | 188 USD | 75 USD |
| 666pcs Lamp Cost | 125206 USD | 49950 USD |
| 5 Year Use Lamp | 666 pcs | 3330 pcs |
| 5 Years Total Cost | 125206(lamp) + 180859 | 249750(lamp)+ 437562 |
| =306065 USD | =687312 USD | |
| 5 Years Save Cost | 381247 USD | |
| Luminous Efficacy | 80lm/W | 40lm/W |
| Illumination | Meet national standards | Meet national standards |
| Control | Intelligence control | No |
