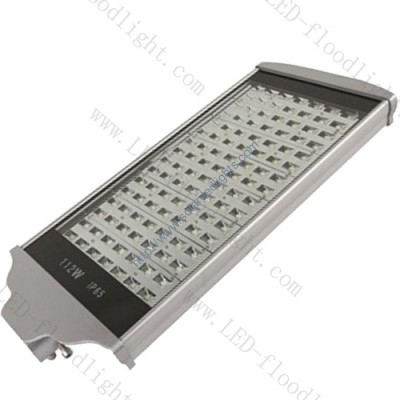

LED Street Lamp (112W) Suggested light replacement: 300W Sodium Lamp
|
|||
| 型号Part Number:ST112B | 灯体尺寸 Light Size : | 308×610×80(mm) | |
| 参数值 Parameter : | |||
| 输入电压 Input Voltage | AC170-250V / DC24V | ||
| 光源功率 Power Power | 112×1W | ||
| 系统功耗 System Consumption | 121 W | ||
| 功率因素 Power Factor | ＞0.92 | ||
| 光斑角度 Light Beam | 120 or 140 degree | ||
| 相关色温 Color Temperature | 2500K-8000K | ||
| 适应温度 Working Temperature | -35℃～50℃ | ||
| 光通量 Luminous Flux | 8960 lm ±5% | ||
| 防护等级 Protecting Grade | IP66 | ||
| 使用寿命 Working Life | ＞50000 hours 小时 | ||
| 平均照度 Average illumination | 高Height 6M | ＞53Lux | |
| 高Height 9M | ＞25Lux | ||
| 高Height 12M | ＞13Lux | ||
| 有效照射范围 Effective illuminated Area | 高Height 6M | 8×20㎡ | |
| 高Height 9M | 12×28㎡ | ||
| 高Height 12M | 16×40㎡ | ||
| Light Distribution Curve/Beam Pattern | Asymmetric (Bat Wing)/ Rectangular Beam | ||
| 主要材料 Chief Material | 铝合金Aluminum Alloy | ||
| 净重 Net Weight | 12.5kg | ||
| 包装尺寸 Packaging Size | 750×360×130(mm) | ||
| 安装管直径 Installing Hole Size | φ61(mm) | ||
