LED Flood light

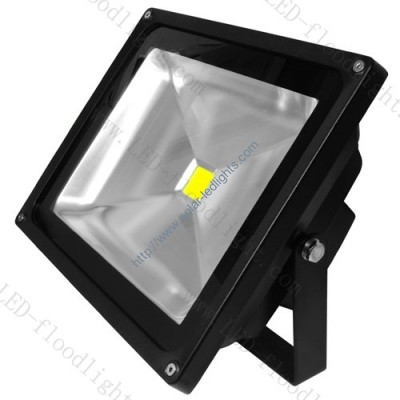

50W led flood light

Model NO.F50WA

50w led light Description

Model NO.		F50WA
Lumens	4600lLm	Beam Angle	120° or 60°
Power Consumption	50 W	Certified	CE & RoHS & C-TICK
Average Life in Hrs	100,000	Bulb Type	Epistar/ Bridgelux
Color Rendering Index	Ra>80	Equivalent To	400 Watts
Power Factor	>0.9	Voltage	AC85~240V
Ambient Temperature	-40℃~+50℃	IP Grade	IP65
Net Weight	3.3Kg	Color Temperature	2700K~8000K /RED/Blue /Green

50w led light Shape Structure:

Shell Material：Aluminum Shell

Color： silver gray/Black/white（>50PCS）

Size:

Solar led light | LED flood light | LED High Bay Light |LED Street light

50w 12v led lights Illumination Distance/illuminance/Irradiated Area

Solar led light | LED flood light | LED High Bay Light |LED Street light

50w 12v led lights Photomatric Data:

Solar led light | LED flood light | LED High Bay Light |LED Street light

50w 12v led lights installation:

1. Choose the location for your new light fitting giving considerations to the points listed opposite(Mounting method reference).

2. Isolate mains.

3. mark fixing points by using the stirrup fixing holes A B C(Picture 1) and drill three fixing holes.

4. Terminate loose ends of wire to an appropriate IP rated junction box or similar, ensuring the Live, Earth and Neutral polarities are observed(Picture 2).

5. Restore power and test the floodlight.

6. Adjust floodlight head towards the area to be illuminated and lock off using two clamping bolts(Picture 3).
