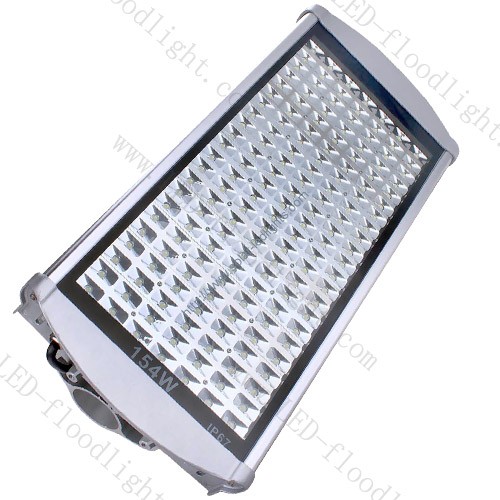

| 型号Part Number: LUX-L154W | 灯体尺寸 Light Size : | 308×700×80(mm) |
| 参数值 Parameter: | ||
| LED功耗 LED Luminous Consumption | 154W | |
| 系统功耗 System Consumption | 165W | |
| 相关色温 Color Temperature | 2500K-10000K | |
| 适应温度 Working Temperature | -35℃～50℃? | |
| 光通量 Luminous Flux | 12320 lm±5% | |
| 防护等级 Protecting Grade | IP66 | |
| 使用寿命 Working Life | ＞50000 hours 小时 | |
| 平均照度 Average illumination? | 高Height 6M | ＞58Lux |
| 高Height 8M | ＞38Lux | |
| 高Height 10M | ＞30Lux | |
| 高Height 12M | ＞26Lux | |
| 有效照射范围 Effective illuminated Area | 高Height 6M | 6×12㎡? |
| 高Height 8M | 12×28㎡? | |
| 高Height 10M | 13×35㎡? | |
| 高Height 12M | 16×42㎡? | |
| Light Distribution Curve/Beam Pattern | Asymmetric (Bat Wing)/ Rectangular Beam | |
| 主要材料 Chief Material | 铝合金Aluminum Alloy | |
| 净重 Net Weight | 12.5 kg? | |
| 包装尺寸 Packaging Size | 850×360×130(mm) | |
| 安装管直径 Installing Size | φ61(mm) | |
| Items | High Pressure Sodium Light | LED Street Light |
| Photometric Performance | Bad | Excellent |
| Radiator Performance | Bad | Excellent |
| Electric Performance | Electric Shock Easy( High Voltage) | Safe (Low Voltage) |
| Working Life | Short (5,000h) | Quite Long (＞50,000h) |
| Working Voltage Range | Narrow (±7%) | Wide(±20%) |
| Power Consumption | Quite High | Quite Low |
| Startup Speed | Quite Slow( Over 10minutes) | Rapid (2s) |
| Strobe | Yes( Alternating Current Drive) | No( Direct Current Drive) |
| Optical Efficiency | Low | High |
| Color Index/ Distinguish Feature | Bad, Ra< 50(The Color Of Object Is Faith, Boring, Hypnosis) | Good, Ra>75(The Color Of Object Is Fresh, Veritable And Comfortable |
| Color Temperature | Quite Low ( Yellow Or Amber , Uncomfortable | Ideal Color Temperature ( Comfortable) |
| Bad Glare | Strong Glare (Dazzle) | No Harmful Glare |
| Light Pollution | Strong | No |
| Heating | Serious (>300℃) | Cold Light (<60℃) |
| Lampshade Turn Dark | Easy ( Absorb Dust) | No ( Static Proof) |
| Lamp Aging Turn Yellow | In A Short Time | No |
| Shockproof Performance | Bad(Fragile ) | Good (No Filament Nor Glass) |
| Environment Pollution | Contains Mercury Element Etc. | No |
| Maintenance Cost | High | Quite Low |
| Product Cubage | Big | Small (Slim Appearance) |
| Cost-Effective | Low | High |
| Product Weight | Heavy | Light |
| Integrated Performance | Bad | Excellent |
| LED Street Light | Traditional Street Lamp | |
| Lamp Power | 154W | 380W |
| Total Power | 165W | 380W+70W(With Converter) |
| 12 hours | 168W*12 hours | 450W*12 hours |
| Consumption | = 1.98 kw/h | =5.4 kw/h |
| 5 Year | 1.98 kw/h*365 days *5 year | 5.4 kw/h*365 days *5 year |
| Consumption | =3613,5 kw/h | =985.5 kw/h |
| 10km 666 pcs Lamps 5 Year Consumption | 3613.5 kw/h*666pcs= | 985.5 kw/h *666pcs= |
| 2406591 kw/h | 6563430 kw/h | |
| Electric Bill | 2406591kw/h*0.2USD=481318USD | 6563430kw/h* 0.2USD=1312686USD |
| Each Lamp Cost | 530 USD | 150 USD |
| 666pcs Lamp Cost | 352980 USD | 99900 USD |
| 5 Year Use Lamp | 666 pcs | 3330 pcs |
| 5 Years Total Cost | 352980(lamp) + 481318 | 499500(lamp)+1312686 |
| =834298 USD | =1812186 USD | |
| 5 Years Save Cost | 977888 USD | |
| Luminous Efficacy | 80lm/W | 40lm/W |
| Illumination | Meet national standards | Meet national standards |
| Control | Intelligence control | No |
